Orion

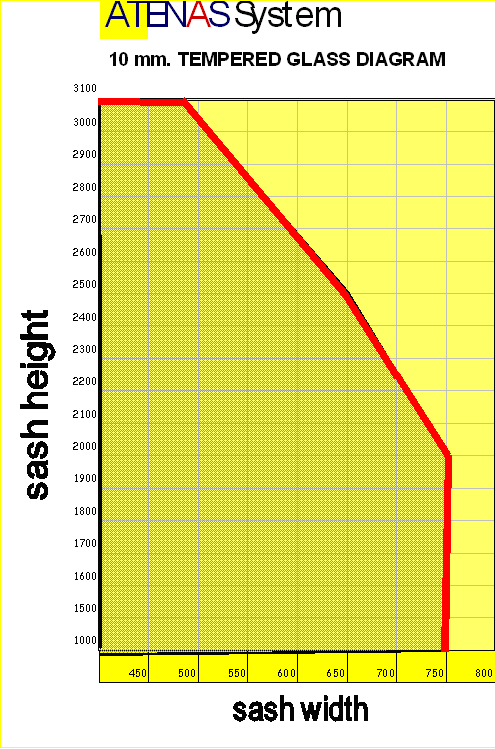

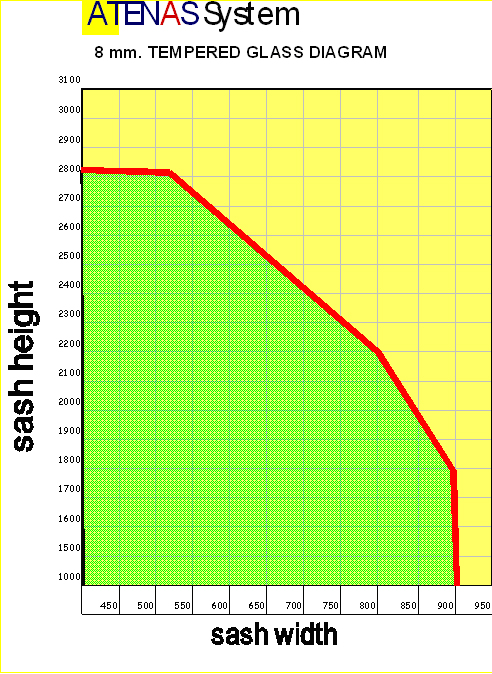

ATENAS System

		;
Simple opening by a pull rod	Easy sliding and turning of the individual elements	Large opening space when elements are opened

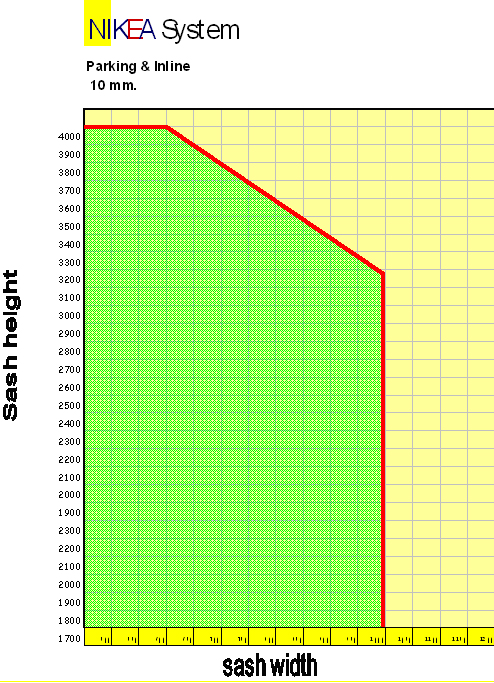

NIKEAS System

Parking & Inline System

		;
Tunning of the opening panel	Sliding the panels towards the opening side	Panels in the parking bay

		;
Straight Systems	Segmented Systems	Angle Solutions 90°-180°
More special Systems on request

Frameless all-glass slide and turn system without vertical profiles between the panels, glazed with toughened safety glass as standard.
The individual panel elements are held and guided in upper and lower aluminium tracks by a hidden mounting system.
The resistance is 3900 Pa (ESG-H, 10 mm).
Sound insulation residual value = 22 dB according to DIN EN ISO 140-3.
Sound insulation residual value = 29 dB according to DIN EN ISO 140-3 using a gap seal.
The system can be designed to allow panels to be stacked open either internally or externally.
The sliding panels can be either slid to one side or to both sides and then opened by turning 90°.
ORION System can be provided with an optional side wall frame along with standard top and bottom frame tracks.
An optional height adjustment profile attached to the top track allows for simple adjustment/alignment of the panels. Additionally, this profile allows the panels to be adjusted to overcome lintel movement of +/– 9mm without having to dismantle components or disturb the fixed and sealed in framework.

All fittings are concealed within the profiles.
The quality of the system is ensured by the use of maintenance-free and durable rustproof components.
Locking and unlocking of the lead turning panels is achieved by hidden upper and lower catches that are operated by a stainless steel wire. The wire is located on the inside in front of the pane and tensioned automatically by springs. The catches are made of plastic so that locking does not consist of “metal on metal”.
Operation of the locking mechanism from inside and/or outside is optional. Operation of the locking mechanism is possible via a pull bar or turn knob. The knob control has an integrated retensioning mechanism to take up any slack in the wire.
The turning panels can be protected against unauthorized opening by latch locks (childproof locks located in the horizontal rails).

Top running with maintenance-free horizontal running assemblies each with two rollers.
The running assemblies consist of three smooth-running needle bearings and two carbon fiber reinforced polyamide rollers respectively. All metal components of the running assemblies are made from stainless steel. The rollers have a low-noise, wear-proof, heat and cold resistant contact surface.
The running assemblies are movable over every angle between 90° and 180° (for ATENAS System).
The running assemblies are movable over every angle between 0° and 21° (for NIKEA System).

The vertical area between the panels has a gap of 1 to 3 mm, so that maximum sealing against driving rain and sufficient ventilation is ensured.
Horizontal upper and lower brush seals are fitted on the inner and outer sides. The lower brush seals is attached to the panel frame and not to the lower guide rail

Toughened safety glass panes of 8 mm or 10 mm may be fitted.
The panes are attached to the upper and lower aluminium profiles using a hidden location system.
Subsequent changing of glass panes in situ is possible without problem.
Subsequent changing of the panels is possible without problem.
All glass panels conform to current Building Regulations.

Unpressurised drainage of the bottom track to the outside is via a cambered profile design. On the inner side of the lower guide rail there is an integrated channel via which cleaning water and condensation drains to the outside of the bottom track.
The ends of the bottom tracks are capped off with end caps to allow the ends of the tracks to be sealed and prevent structural water penetration.
